3-Bedroom, 3641 Sq Ft Ranch Plan with Split Master Bedroom

About House Plan #108-1637

3641

Sq Ft

3

Bedrooms

3

Baths

0

Half Baths

2

Cars

2

Stories

108' 0'

Width

80

Depth

Starting at$2000.00What's included

STEP 1

How much will it cost to build?

Estimate your costs based on your location and materials.

Free Cost Instant Estimator

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Floor Plans

Share Plans

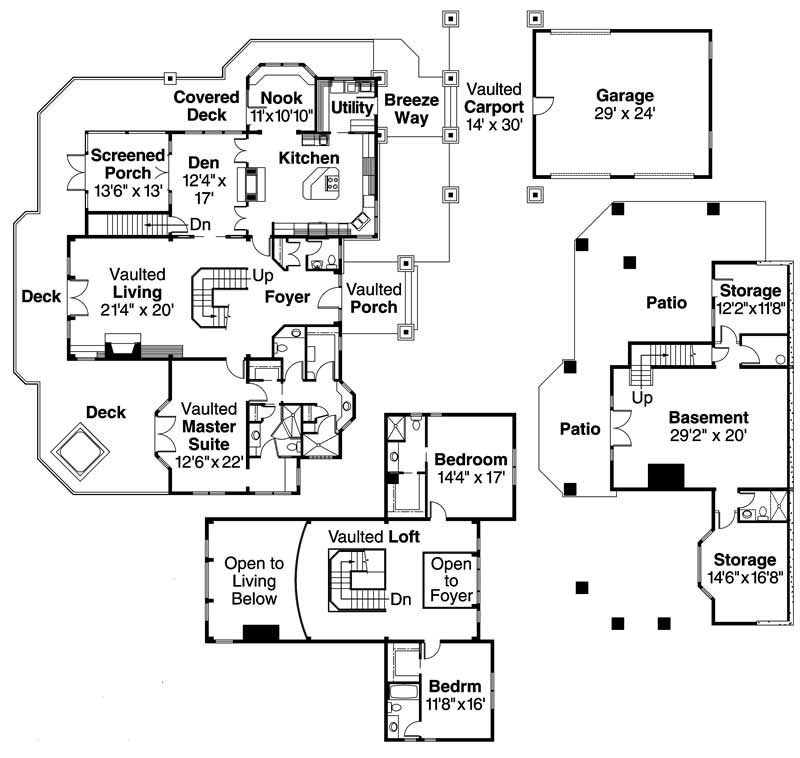

MAIN FLOOR PLAN

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Additional Notes from Designer

PLEASE NOTE!! For this designer, The PDF that comes with the PRINT Packages (5 set+PDF and 8 set+PDF) is NOT Modifiable - it is for printing ONLY! PLEASE NOTE!! Optional Foundations (foundations that cost extra money) will take 5-10 business days to complete.

House Plan Description

This is a three story, bungalow style house plan with 3653 total living square feet. This estate-size bungalow home plan is an attractive update of the craftsman-style popular in the early 1900s. Its roomy kitchen features a two-sided fireplace, large work island, built-in desk, and sinks in two areas. The luxurious owners' suite boasts two walk-in closets plus two linked yet separately enclosed toilet areas.

Home Details

Summary

Plan #:108-1637

Starting at:$2000.00

Floors:2

Bedrooms:3

Full Baths:3

Half Baths:0

Garage:

Square Footage

Heated Area:3641 Sq. Ft.

First Floor:2506 Sq. Ft.

Second Floor:1135 Sq. Ft.

Unheated Area:

Dimensions

Architectural Styles

Bungalow Craftsman

Exterior Wall Material

Vinyl SidingRock/Stone

Roof Pitch

9/12

Ceiling Height

10 Foot Ceiling

Special Feature

Fireplace

Garage Type

Side Entry

Exterior Wall Framing

2x6

How much will it cost to build?

Estimate your costs based on your location and materials.

-OR-

What's the differnce?

What’s Included

Most plan sets include the following:

Artist’s rendering of the home,

Front/Rear/Left and Right Elevations,

Main floor plan, Second or Basement floor plans (if applicable),

Foundation plan and detail,

Floor framing plan,

Roof framing plan, supporting details and

Electric layout.

What’s Not Included

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required.

Site Plan - handled locally when required.

Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

Energy calculations - handled locally when required.

Additional Information

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
