5-Bedroom, 5083 Sq Ft Colonial Plan with Peninsula/Eating Bar

About House Plan #106-1064

5083

Sq Ft

5

Bedrooms

5

Baths

2

Half Baths

3

Cars

2

Stories

87' 0'

Width

71

Depth

Starting at$1695.00What's included

STEP 1

How much will it cost to build?

Estimate your costs based on your location and materials.

Free Cost Instant Estimator

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Floor Plans

Share Plans

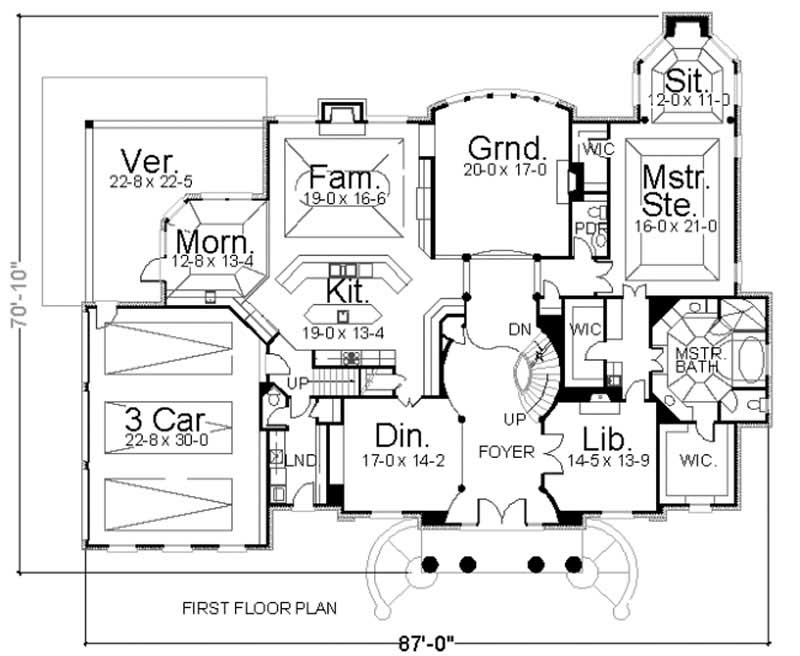

MAIN FLOOR PLAN

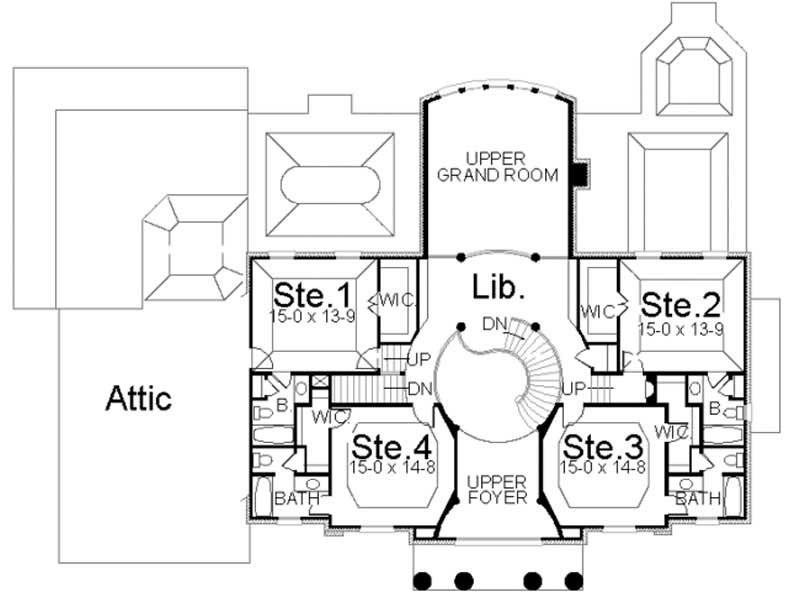

SECOND FLOOR PLAN

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Additional Notes from Designer

The plans by this designer do NOT include framing. PLEASE NOTE: An Unlimited Use License is available for purchase through the designer BUT YOU MUST purchase a CAD package!

House Plan Description

This home has a very beautiful floor design. On the main floor there is a beautiful grand room. And the kitchen/family room are open to each other with a great morning room close by. The foyer is open and looks at the grand staircase. Upstairs there are four bedrooms that are the perfect size, each with a personal bath.

Home Details

Summary

Plan #:106-1064

Starting at:$1695.00

Floors:2

Bedrooms:5

Full Baths:5

Half Baths:2

Garage:

Square Footage

Heated Area:5083 Sq. Ft.

First Floor:3438 Sq. Ft.

Second Floor:1645 Sq. Ft.

Unheated Area:

Dimensions

Architectural Styles

Colonial European Luxury Traditional

Exterior Wall Material

Brick

Special Feature

Family Room

Garage Type

Side Entry

Fireplaces

Three Fireplaces

How much will it cost to build?

Estimate your costs based on your location and materials.

-OR-

What's the differnce?

What’s Included

Most plan sets include the following:

Foundation Plan

Floor plans

Electrical layout

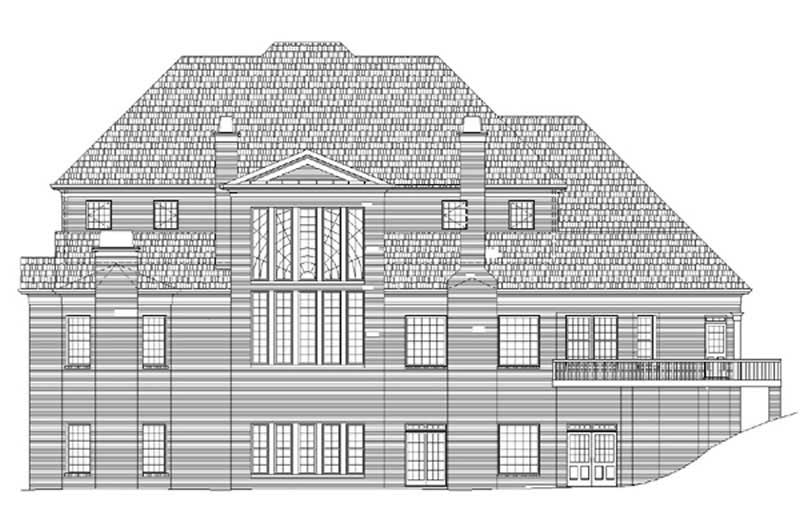

Exterior elevations

Cross-section

Typical Call detail

Typical footing detail

Miscellaneous details

Window/Door sizes

Roof plan

What’s Not Included

These items are NOT included:

Framing.

Architectural or Engineering Stamp - handled locally if required.

Site Plan - handled locally when required.

Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

Energy calculations - handled locally when required.

Additional Information

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

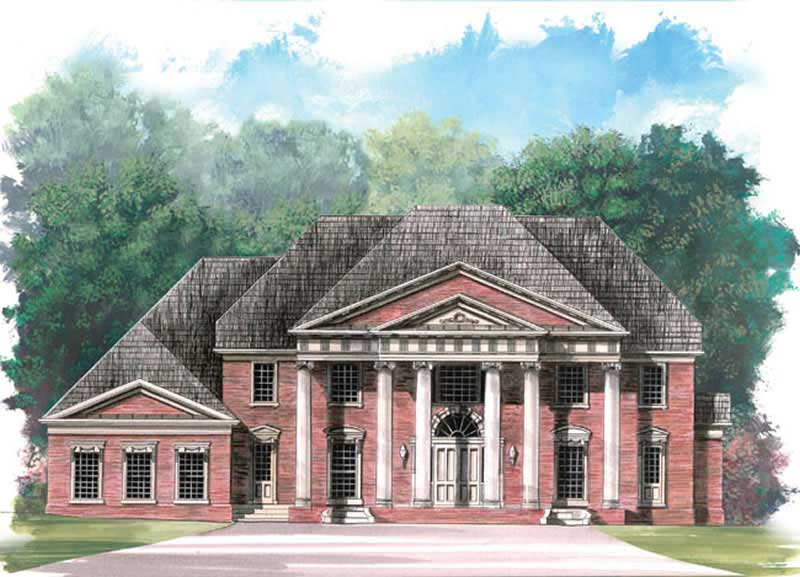

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
