3-Bedroom, 1500 Sq Ft Ranch Plan with Peninsula/Eating Bar

About House Plan #157-1627

1500

Sq Ft

3

Bedrooms

1

Baths

0

Half Baths

0

Cars

2

Stories

28' 0'

Width

30

Depth

Starting at$920.00What's included

STEP 1

How much will it cost to build?

Estimate your costs based on your location and materials.

Free Cost Instant Estimator

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Floor Plans

Share Plans

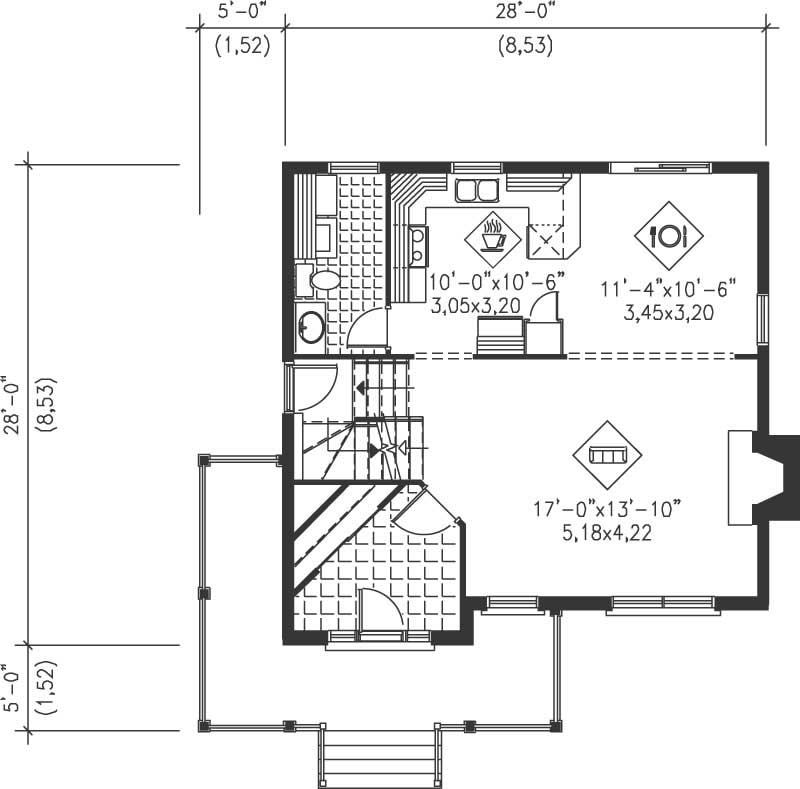

MAIN FLOOR PLAN

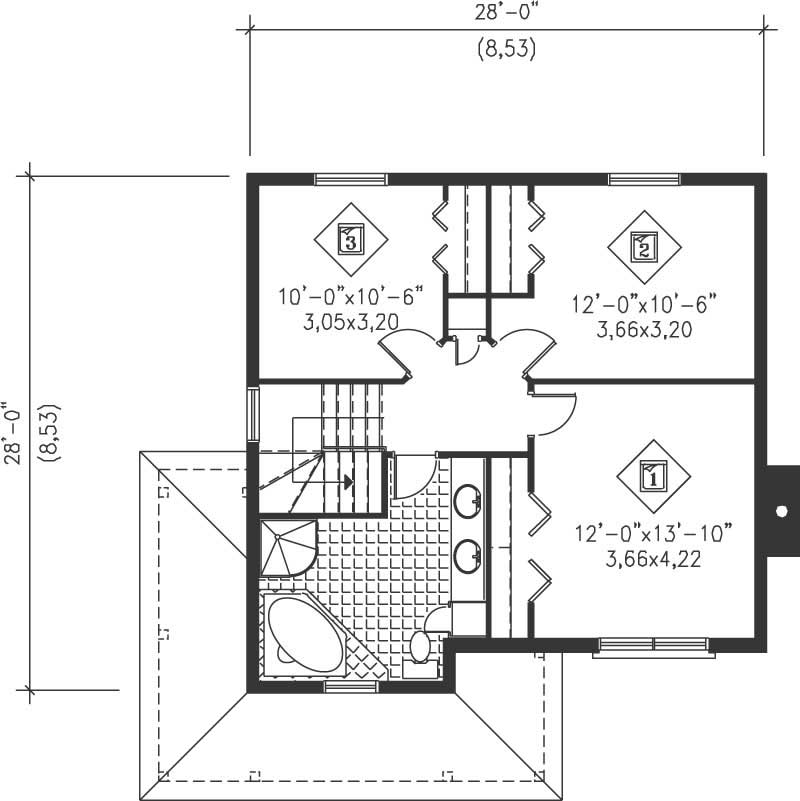

UPPER FLOOR PLAN

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Additional Notes from Designer

This designer doesn't offer electrical layouts with their plans! For our Ontario customers - BCIN is available for this designer's plans. Please submit a modification request to receive a free quote.

House Plan Description

The PI-20501 home plan is a two story, Traditional, Bungalow Style house plan with 1500 total living square feet. This house plan has a total of 3 bedrooms and 1 bathroom. This house plan is great for a narrow lot.

Home Details

Summary

Plan #:157-1627

Starting at:$920.00

Floors:2

Bedrooms:3

Full Baths:1

Half Baths:0

Garage:

Square Footage

Heated Area:1500 Sq. Ft.

First Floor:750 Sq. Ft.

Second Floor:750 Sq. Ft.

Unheated Area:

Dimensions

Architectural Styles

Country Bungalow Traditional Small House Plans

Exterior Wall Material

Aluminum SidingBrick

Fireplaces

One Fireplace

Building Lot Type

Narrow Lot Design

How much will it cost to build?

Estimate your costs based on your location and materials.

-OR-

What's the differnce?

What’s Included

Most plan sets include the following:

Exterior elevations

Foundation plan

Floor plans

Cross sections

Staircase section

Roof truss drawings

Specifications

Construction details

Size of structural elements (posts, beams, concrete pads, etc.)

What’s Not Included

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required.

Site Plan - handled locally when required.

Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

Energy calculations - handled locally when required.

Additional Information

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
