3-Bedroom, 1780 Sq Ft Small House Plans Plan with Master Bathroom

About House Plan #100-1018

1780

Sq Ft

3

Bedrooms

2

Baths

0

Half Baths

3

Cars

1

Stories

67' 0'

Width

54

Depth

Starting at$1400.00What's included

STEP 1

How much will it cost to build?

Estimate your costs based on your location and materials.

Free Cost Instant Estimator

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Floor Plans

Share Plans

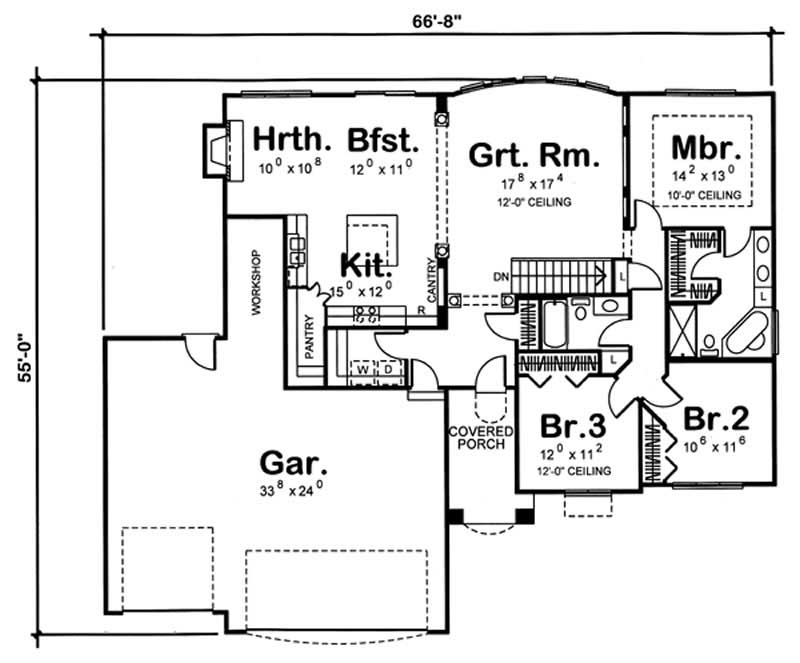

MAIN LEVEL FLOOR PLAN

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Additional Notes from Designer

The CAD File formats are drawn in SoftPlan. PLEASE NOTE: Plans by this designer do NOT come with FRAMING! This designer does not do ICF.

House Plan Description

The #100-1018 home plan is a single story, Traditional Style house plan with 1780 total living square feet. This home plan has 3 bedrooms, 2 bathrooms, and a 3 car garage. This well thought out floor plan uses effectively the amount of space that is being provided. The kitchen area is nestled behind the garage and is linked to the great room. The master bedroom is located in the back/right of the plan. This plan is a great Traditional style house plan.

Home Details

Summary

Plan #:100-1018

Starting at:$1400.00

Floors:1

Bedrooms:3

Full Baths:2

Half Baths:0

Garage:

Square Footage

Heated Area:1780 Sq. Ft.

First Floor:1780 Sq. Ft.

Unheated Area:

Garage:948 Sq. Ft.

Dimensions

Depth:54' 8''

Ridge Height:20'8' 0''

Architectural Styles

Traditional

Roofing Type

Hip

Roof Pitch

6/12

Ceiling Height

9 Foot Ceiling

Garage Type

Attached GarageFront Entry

Exterior Wall Framing

2x4

How much will it cost to build?

Estimate your costs based on your location and materials.

-OR-

What's the differnce?

What’s Included

Most plan sets include the following:

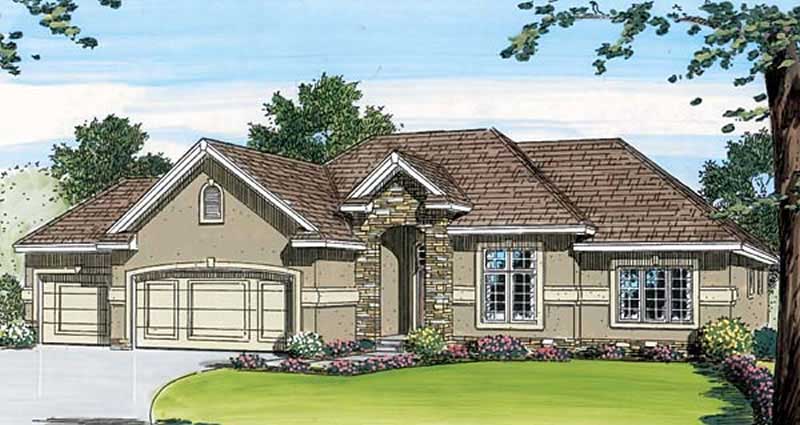

Cover Sheet: Shows the front elevation and typical notes and requirements.

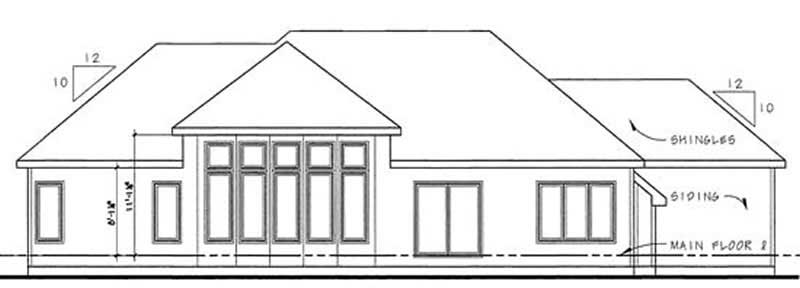

Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements

Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.

Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible

Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.

Roof Plan

Typical wall section

Typical stair section

Cabinets are shown on all plans.

What’s Not Included

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required.

Site Plan - handled locally when required.

Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

Energy calculations - handled locally when required.

Additional Information

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
