4-Bedroom, 3106 Sq Ft Traditional Plan with Split Master Bedroom

About House Plan #147-1104

3106

Sq Ft

4

Bedrooms

3

Baths

0

Half Baths

2

Cars

2

Stories

49' 0'

Width

36

Depth

Starting at$1050.00What's included

STEP 1

How much will it cost to build?

Estimate your costs based on your location and materials.

Free Cost Instant Estimator

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Floor Plans

Share Plans

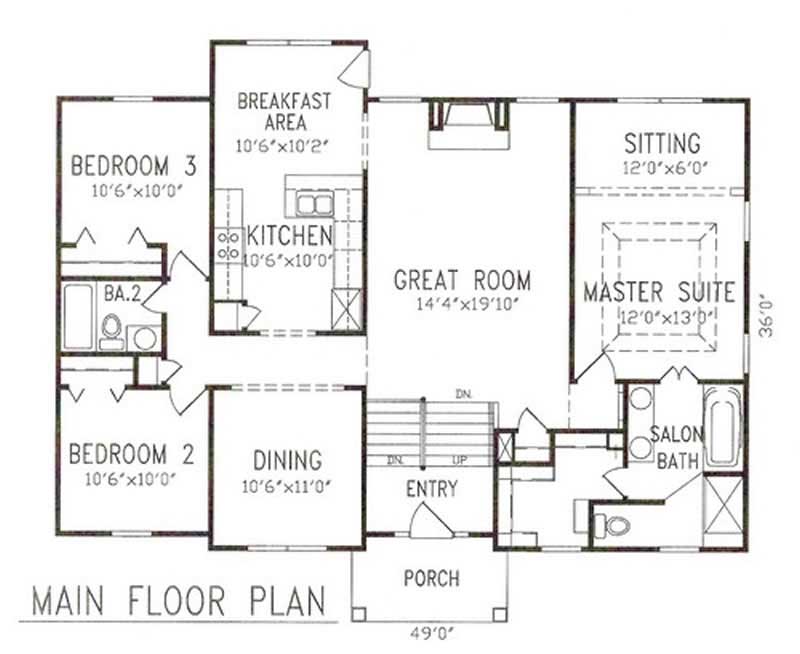

MAIN FLOOR PLAN

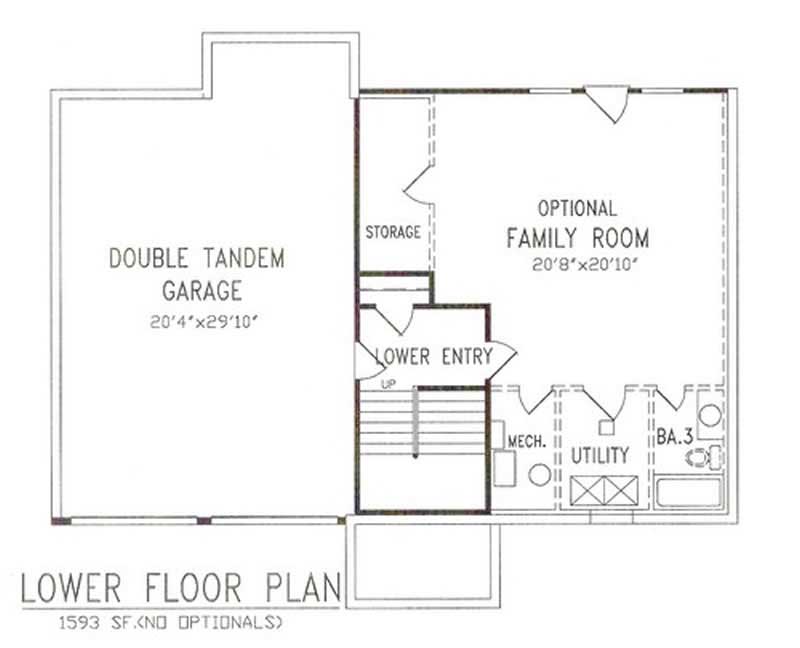

LOWER FLOOR PLAN A

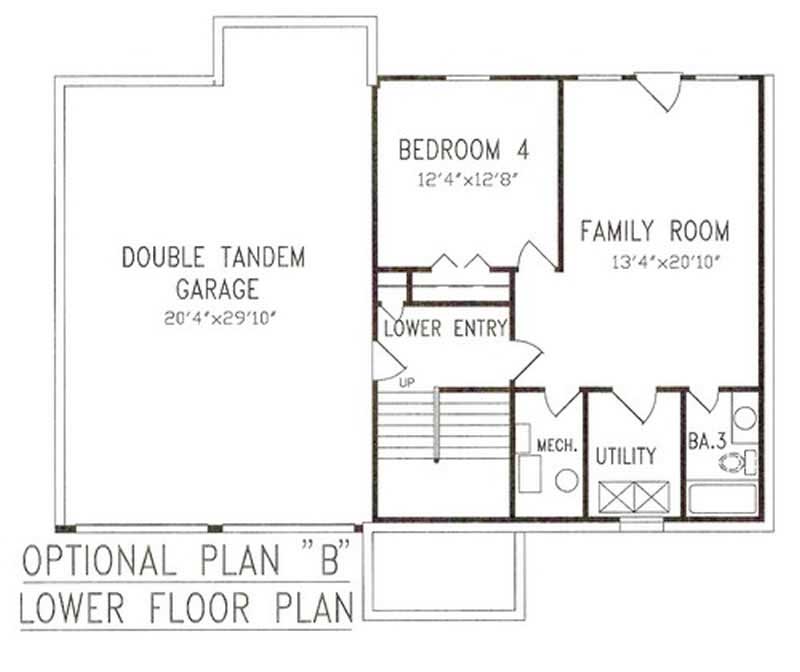

LOWER FLOOR PLAN B

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Additional Notes from Designer

PLEASE NOTE!! Mirror Reverse ONLY available if purchasing a PDF. Right Reading Reverse ONLY available if purchasing a CAD!

House Plan Description

The LP-31061 home plan is a two story, Traditional Style house plan with 3106 total living square feet. This home plan has 4 bedrooms, 3 bathrooms, and a 2 car garage. This home plan has ceiling heights of 8 and 9 ft., exterior wall framing is 2x4, and the exterior wall material is aluminum siding/wood siding.

Home Details

Summary

Plan #:147-1104

Starting at:$1050.00

Floors:2

Bedrooms:4

Full Baths:3

Half Baths:0

Garage:

Square Footage

Heated Area:3106 Sq. Ft.

First Floor:1592 Sq. Ft.

Unheated Area:

Basement:732 Sq. Ft.

Dimensions

Architectural Styles

Traditional

Exterior Wall Material

Aluminum SidingVinyl SidingWood Siding

Ceiling Height

9 Foot Ceiling8 Foot Ceiling

Garage Type

Front Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

How much will it cost to build?

Estimate your costs based on your location and materials.

-OR-

What's the differnce?

What’s Included

Most plan sets include the following:

Foundation Plan

Floor plans

Roof plan

Exterior Elevations

Cross Sections & typical details

Interior elevations as needed

Door & Window schedule

Electrical layout

What’s Not Included

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required.

Site Plan - handled locally when required.

Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

Energy calculations - handled locally when required.

Additional Information

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
