GaragePlan #163-1064: 0 Bedrm, 2-Car Garage

About House Plan #163-1064

900

Sq Ft

0

Bedrooms

0

Baths

0

Half Baths

2

Cars

1

Stories

28' 0'

Width

36

Depth

Starting at$500.00What's included

STEP 1

How much will it cost to build?

Estimate your costs based on your location and materials.

Free Cost Instant Estimator

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Floor Plans

Share Plans

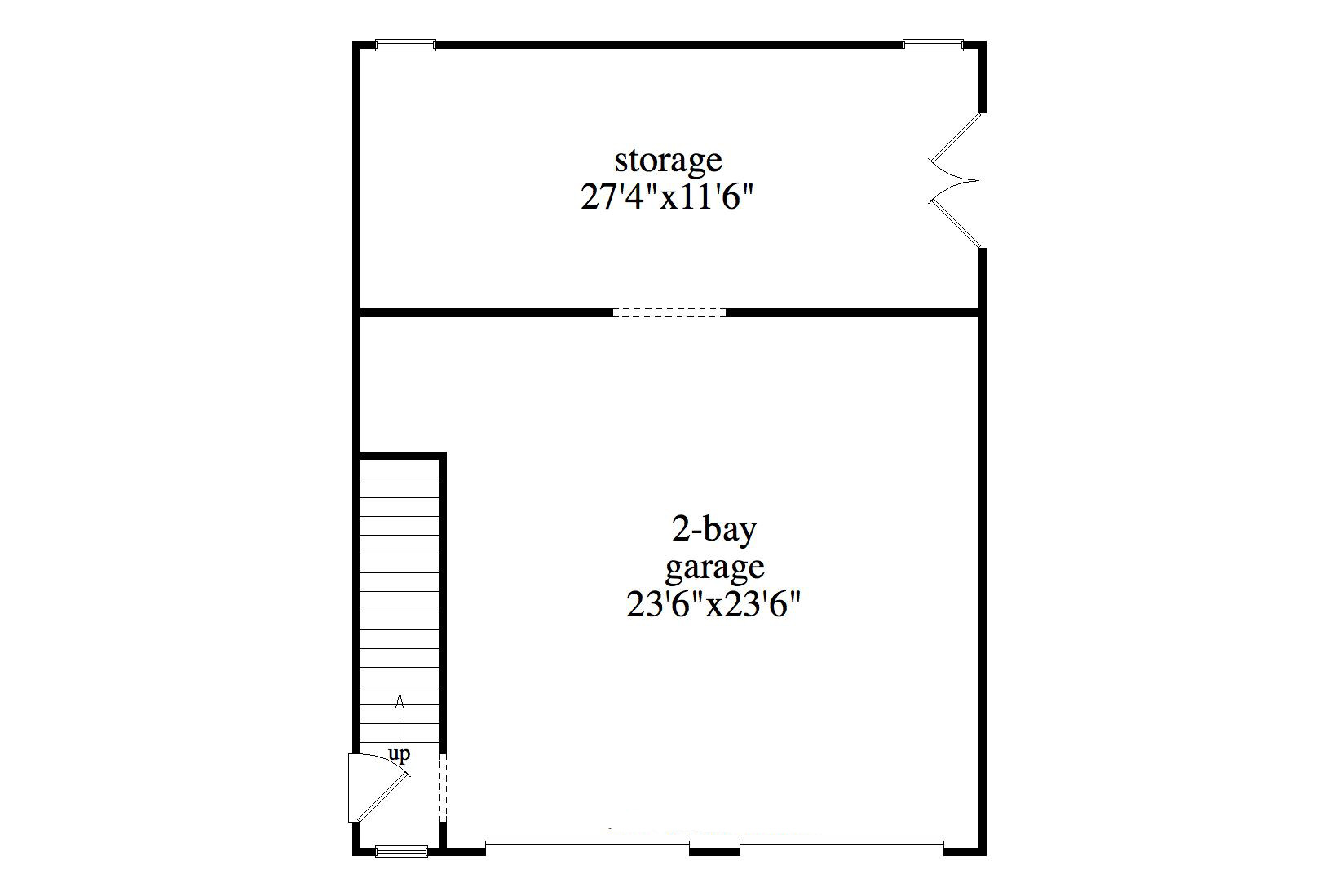

Floor Plan Main Level

Floor Plan Upper Level

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Additional Notes from Designer

Please Note: There might be a 4-5 day delay in getting the sales orders out due to updates being made to the designer's plans.

Please note, the house plan that goes along with this Garage is plan # 163-1063.

House Plan Description

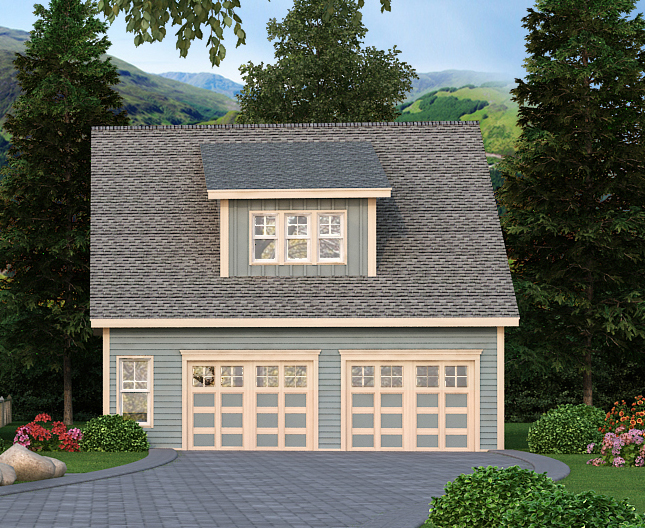

This is a detached 2-car garage with generous storage space in the back. It has a rustic and craftsman appearance on the exterior. Upstairs is a large office, a large cubby, a half bath and storage area

Home Details

Summary

Plan #:163-1064

Starting at:$500.00

Floors:1

Bedrooms:0

Full Baths:0

Half Baths:0

Garage:

Square Footage

Heated Area:900 Sq. Ft.

Unheated Area:

First Floor:900 Sq. Ft.

Garage:900 Sq. Ft.

Dimensions

Architectural Styles

Garage Craftsman

Roofing Type

Gable

Roof Pitch

10/12

Ceiling Height

9 Foot Ceiling8 Foot Ceiling

Exterior Wall Framing

2x4

Building Lot Type

Narrow Lot Design

How much will it cost to build?

Estimate your costs based on your location and materials.

-OR-

What's the differnce?

What’s Included

Most plan sets include the following:

FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.

FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.

ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.

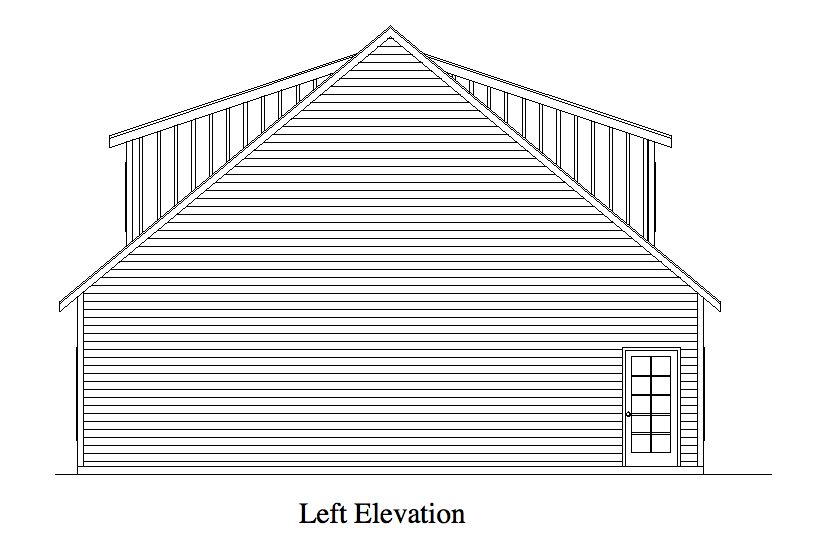

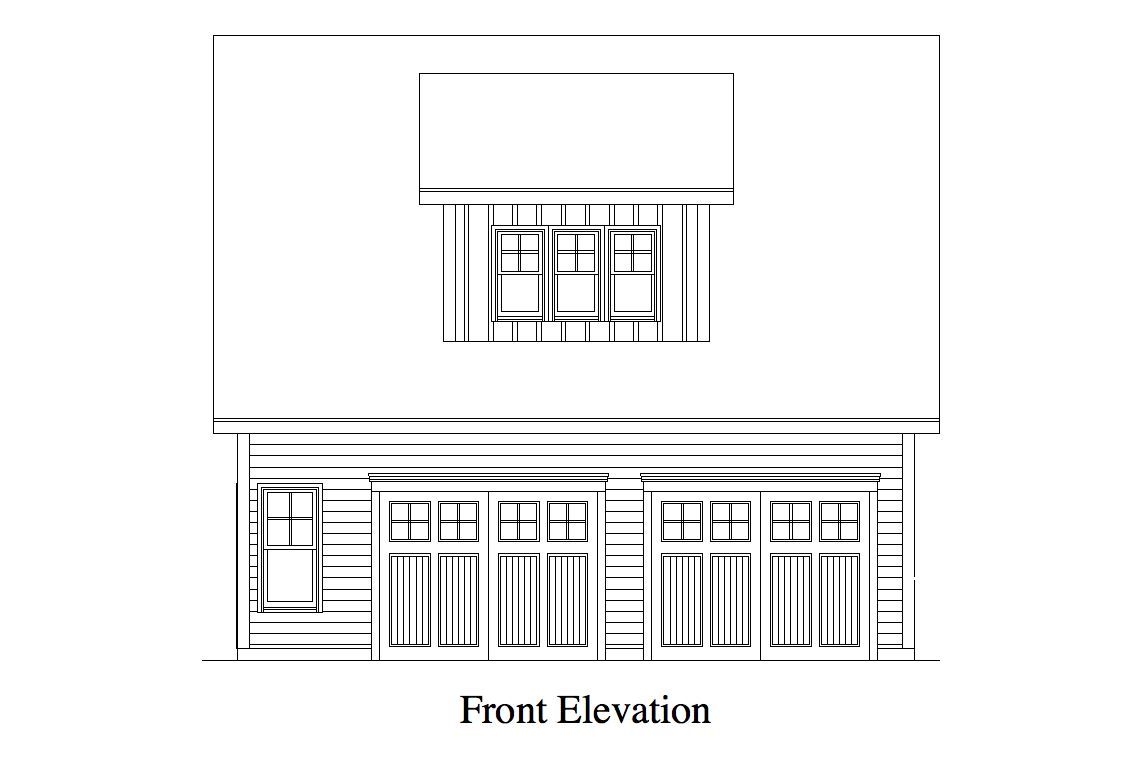

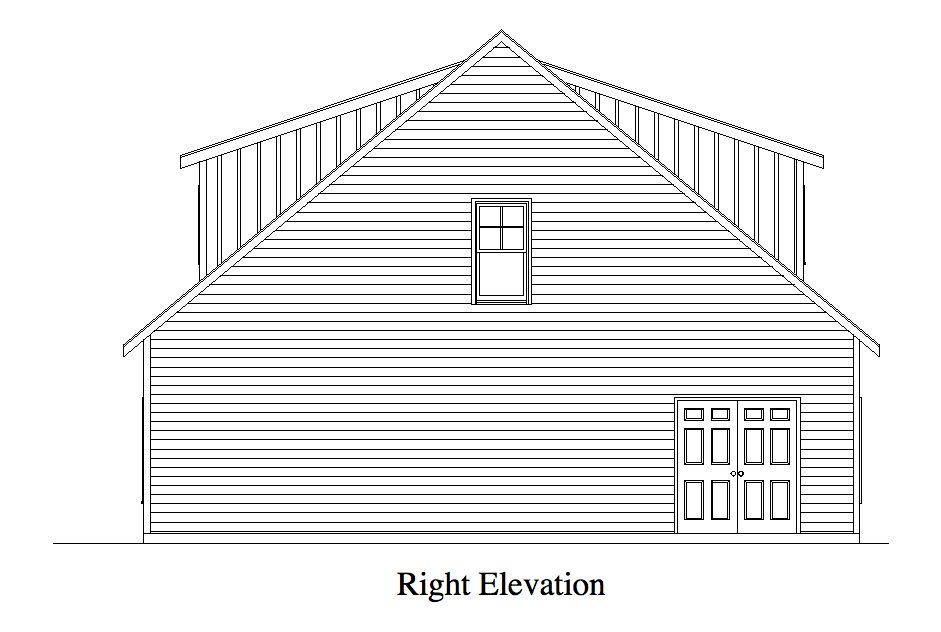

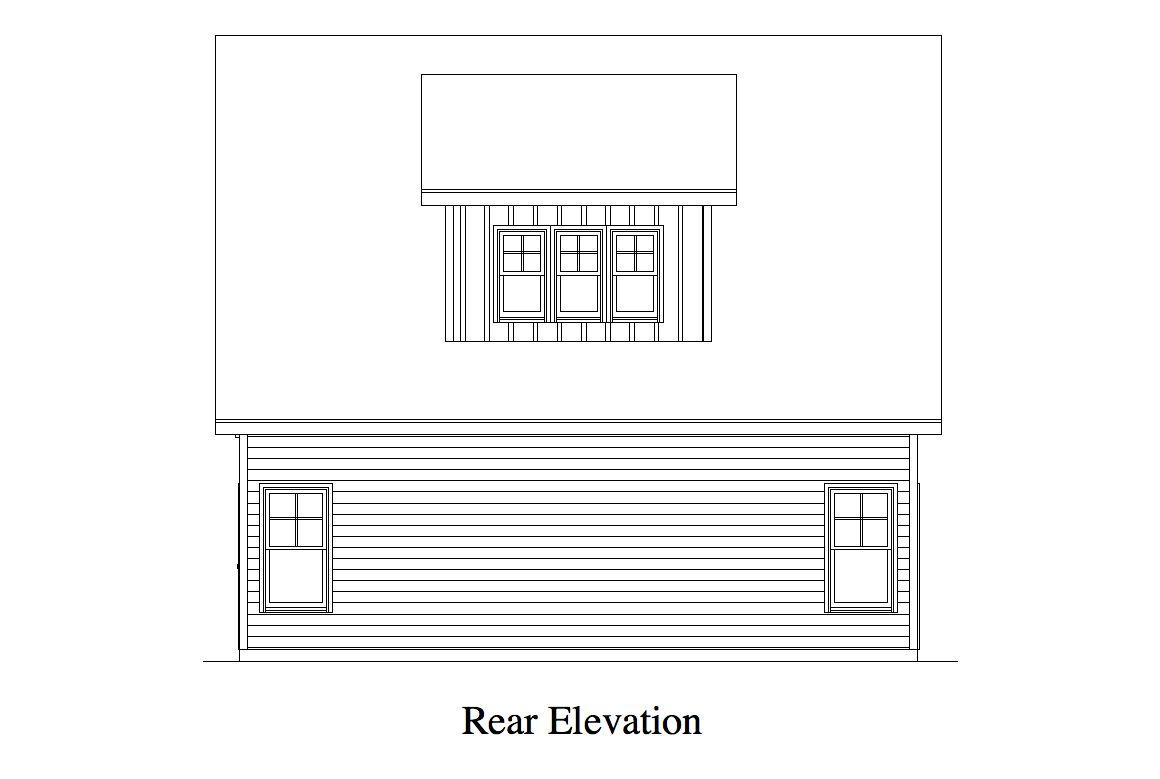

FRONT, REAR, AND SIDE ELEVATIONS:The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.

CROSS SECTIONS AND INTERIOR DETAILS:Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.Includes cabinet details and typical details.

What’s Not Included

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required.

Site Plan - handled locally when required.

Electrical Layout (location of light fixtures, switches, and fans)- Although may be available for an additional charge.

Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

Energy calculations - handled locally when required.

Additional Information

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
