2-Bedroom, 2483 Sq Ft Ranch Plan with Covered Lanai

About House Plan #132-1194

2483

Sq Ft

2

Bedrooms

2

Baths

0

Half Baths

3

Cars

3

Stories

83' 4'

Width

56

Depth

Starting at$1245.00What's included

STEP 1

How much will it cost to build?

Estimate your costs based on your location and materials.

Free Cost Instant Estimator

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Floor Plans

Share Plans

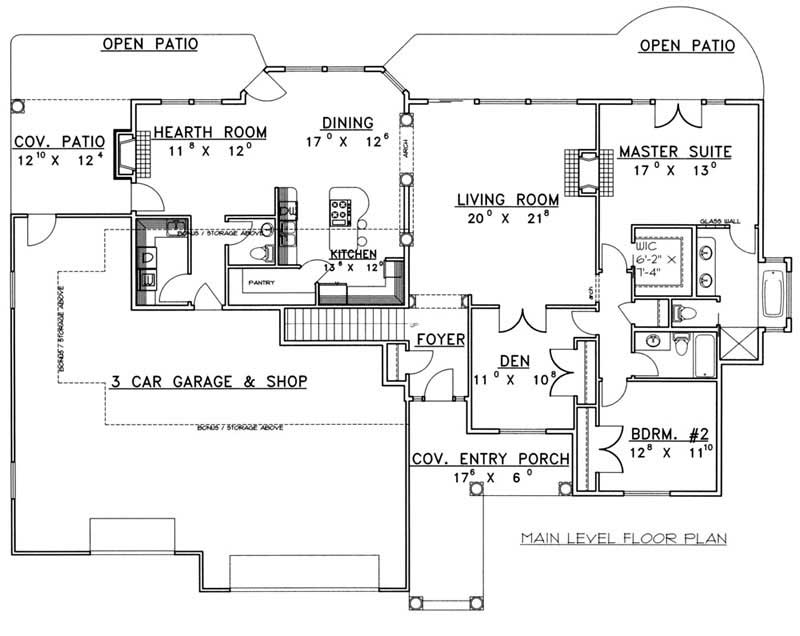

MAIN LEVEL FLOOR PLAN

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Additional Notes from Designer

PLEASE NOTE! The CAD - Unlimited package is NOT an unlimited license - it is a license to build up to 5 homes.

House Plan Description

*Standard Frame Construction *Ranch Style *Covered Entry Porch *Den *Fireplace In Master Suite *Walk-In Closet In Master Suite *Double Sinks In Master Bathroom *Living Rooom Has Fireplace *Hearth Room *Kitchen Island *Walk-In Pantry In Kitchen *3-Car Garage And Shop *Main Level Laundry Room *Unfinished Attic *Bonus/Craft Room

Home Details

Summary

Plan #:132-1194

Starting at:$1245.00

Floors:3

Bedrooms:2

Full Baths:2

Half Baths:0

Garage:

Square Footage

Heated Area:2483 Sq. Ft.

First Floor:2241 Sq. Ft.

Third Floor:242 Sq. Ft.

Unheated Area:

Garage:1273 Sq. Ft.

Dimensions

Width:83' 4''

Depth:56' 7''

Ridge Height:22'4' 0''

Architectural Styles

Ranch Vacation Homes Rustic

Exterior Wall Material

Vinyl SidingRock/StoneWood Siding

Roof Pitch

6/12

Ceiling Height

9 Foot Ceiling

Special Feature

FireplaceMain Level Laundry

Garage Type

Attached Garage

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

Kitchen Features

Kitchen IslandWalk-in Pantry

Master Suite Features

Fireplace in Master

How much will it cost to build?

Estimate your costs based on your location and materials.

-OR-

What's the differnce?

What’s Included

Most plan sets include the following:

Exterior elevations: shows the home on all four sides, calls out exterior finishes, rooflines, window and door locations.

Floor plans: includes interior and exterior dimensions, window/door schedule, wall framing details.

Foundation plan: shows footing, stem wall, and slab placement, including all connection details.

Floor and roof framing plans show truss/rafter placements, including all beams/connection details.

Cross-sections: cut-through view of the structure from roof to foundation, shows framing, plate heights, insulation, etc.

Electrical layout

General notes/details to cover the entirety of the project

What’s Not Included

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required.

Site Plan - handled locally when required.

Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

Energy calculations - handled locally when required.

Additional Information

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
